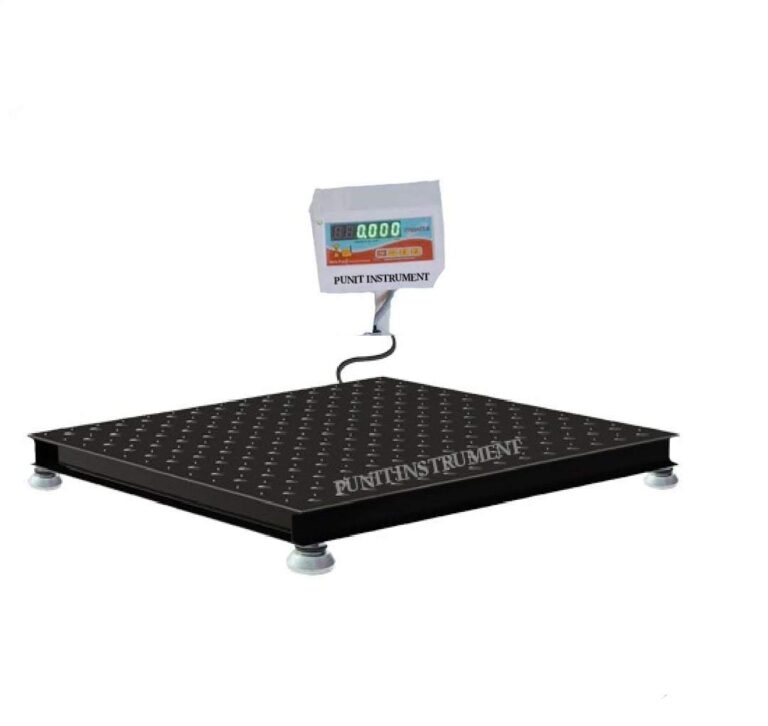

Industrial Weighing Scale with Label Printer ( Only Label Printing. )

Description

 Industrial Platform Weighing System with Integrated Barcode Printing & Checkweigher Verification

Advanced industrial platform weighing scale combining heavy-duty weighing, automated barcode label printing, and precision checkweigher functionality. This all-in-one system delivers complete production line weighing, labeling, and quality control in a single robust solution.

System Architecture

Three-in-One Integrated System

Platform Weighing → Checkweigher Verification → Barcode Label Printing
       ↓                    ↓                         ↓
Accurate Weight    Pass/Fail Quality Control    Automated Labeling

Core System Components

• Heavy-Duty Platform Scale: Industrial-grade weighing platform

• Integrated Barcode Label Printer: Industrial thermal transfer printer

• Checkweigher Module: High-speed weight verification

• Rejection System: Automatic under/overweight item rejection

• HMI Touchscreen: Industrial human-machine interface

Key Features & Benefits

Industrial Weighing Capabilities

• Heavy-Duty Platform: 500×600mm to 1000×1200mm sizes

• High Capacity: 150kg to 2000kg weighing capacity

• Rugged Construction: IP66/IP67 rated for harsh environments

• Multiple Weighing Units: kg, lb, pcs with automatic conversion

Checkweigher Functionality

• High-Speed Verification: Up to 150 packages per minute

• Precision Tolerance: ±0.1% to ±1% weight tolerance settings

• Automatic Rejection: Pneumatic or mechanical reject system

• Statistical Process Control: Real-time production quality monitoring

Barcode Label Printing

• Industrial Printer: 300 DPI thermal transfer printing

• Variable Data Printing: Weight, date, batch, expiry information

• Compliance Labels: GS1, UDI, traceability standards

• Custom Templates: Brand-specific label designs

Technical Specifications

Hardware Specifications

Checkweigher Specifications

Software Specifications

Checkweigher Performance

Weight Verification Process

# Automated Checkweighing Algorithm
def checkweighing_process(item_weight):
    target_weight = get_target_weight()
    tolerance = get_tolerance_settings()

    if item_weight < (target_weight - tolerance):
        return "UNDERWEIGHT", trigger_rejection()
    elif item_weight > (target_weight + tolerance):
        return "OVERWEIGHT", trigger_rejection()
    else:
        return "PASS", proceed_to_labeling()

Quality Control Features

• Multi-Zone Tolerance: Different tolerances for under/overweight

• Auto-Tare Compensation: Automatic container weight deduction

• Drift Compensation: Self-adjusting for environmental changes

• Statistical Analysis: Real-time production quality tracking

Label Printing System

Barcode Label Capabilities

┌─────────────────────────────────┐
│  PRODUCT: WIDGET A             │
│  BATCH: B2024-001              │
│  WEIGHT: 1.25kg               │
│  EXPIRY: 2025-12-31           │
│  [QR CODE with full data]     │
│  [CODE 128 barcode]           │
└─────────────────────────────────┘

Printing Features

• GS1 Compliance: Industry-standard barcode formats

• Variable Information: Weight, date, time, sequential numbering

• Multi-Language Support: Global character sets

• Batch Printing: High-volume label production

Industrial Applications

Manufacturing & Production

• Automotive: Parts weighing and traceability

• Electronics: Component counting and verification

• Chemicals: Batch weighing and hazardous material labeling

• Pharmaceutical: Precision weighing with regulatory compliance

Food & Beverage

• Package Verification: Ensure correct fill weights

• Batch Coding: Expiry dates and lot numbers

• Portion Control: Precise weight portions

• Compliance Labeling: Nutritional information printing

Logistics & Warehousing

• Shipping Verification: Package weight confirmation

• Inventory Labeling: Barcode labels for stock management

• Quality Assurance: Outbound shipment verification

• Parcel Sorting: Weight-based automatic sorting

Workflow Automation

Complete Production Line Process

1. Weighing Phase: Accurate weight measurement on platform

2. Checkweighing: Automatic pass/fail verification

3. Label Printing: Instant barcode label generation

4. Application: Automatic or manual label application

5. Data Recording: Complete transaction logging

Rejection System Types

• Pneumatic Rejection: Air blast for lightweight items

• Push Arm Rejection: Mechanical arm for medium weights

• Diverter Gate: Direction change for conveyor systems

• Drop-Through: Trap door for failed items

Quality Control & Reporting

Statistical Process Control (SPC)

• Real-Time Monitoring: Live weight trend displays

• Quality Metrics: Cpk, PPM, standard deviation

• Historical Analysis: Long-term performance tracking

• Alert System: Automatic notifications for deviations

Compliance Reporting

• Batch Records: Complete production batch documentation

• Quality Certificates: Product quality verification

• Audit Trails: Tamper-proof operation records

• Regulatory Compliance: FDA, ISO, HACCP ready

Integration Capabilities

Production Line Integration

Platform Scale → PLC Control → Enterprise Systems
      ↓              ↓              ↓
Weight Data → Automation Control → ERP/MES

Supported Protocols

• Industrial Networks: Ethernet/IP, Profinet, Modbus TCP

• Serial Communication: RS-232, RS-485

• Database Connectivity: SQL, Oracle, SAP

• Cloud Integration: IoT platform connectivity

Technical Requirements

Installation Specifications

• Power Requirements: 110V/220V, 50/60Hz

• Air Supply: 6-8 bar for pneumatic rejection (if applicable)

• Floor Loading: Structural requirements for heavy capacities

• Environmental: Temperature, humidity specifications

Safety & Compliance

• Electrical Safety: CE, UL, CSA certifications

• Weights & Measures: NTEP, OIML legal-for-trade

• Food Safety: FDA, USDA compliance (food-grade models)

• Explosion Proof: ATEX certification available

Maintenance & Support

Preventive Maintenance

• Regular Calibration: Scheduled accuracy verification

• Printer Maintenance: Print head cleaning and replacement

• Mechanical Inspection: Rejection system servicing

• Software Updates: Feature enhancements and security

Technical Support

• 24/7 Support: Emergency technical assistance

• Remote Monitoring: Proactive system health checks

• Spare Parts: Quick availability of critical components

• Training Services: Operator and maintenance training

Return on Investment

Production Benefits

• Quality Improvement: 99.9% weighing accuracy

• Labor Reduction: 70% less manual checking required

• Speed Increase: 3x faster than manual processes

• Waste Reduction: 95% fewer weighing errors

Cost Savings

• Reduced Product Giveaway: Precise weight control

• Lower Labor Costs: Automated verification process

• Fewer Returns: Improved product quality

• Better Compliance: Reduced regulatory risks

Case Studies

Success Stories

• Food Manufacturer: 99.5% checkweigher accuracy achieved

• Automotive Supplier: 80% reduction in weighing time

• Pharmaceutical Company: Full FDA compliance achieved

• Logistics Center: 10,000 packages/day processed
