Description

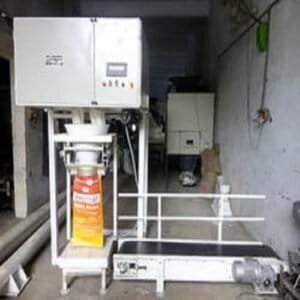

The Powder Bagging system is Suitable for High-Speed bagging of dry and free-flowing powders (Starc, Maida, Flour, Fine sugar, Chemical )
Knowing the Materials
-
The first vital, most important step is to know the flow-ability of your material, commodity that is being bagged.
-
Is it granular solids? Is it powder? Is it free-flowing? Is it dry or it has moisture (sticky)?
-
Can the material easily flow down the hopper by gravity without sticking to the surface? Or whether it requires a forced feeding mechanism i.e. screw feeder?
-
Even little amount of sticking to surface could affect weight accuracy, since what is weighed does not fully gets discharged into the bag
Features
-
Easy to install
-
Accurate weighing-No excess , no shortage
-
Eliminates Human errors
-
Higher productivity
-
Low operating cost
-
Easy maintenance
-
Flexibility to run different bag capacities with a single machine
-
Interlock sensors to avoid accidental spillage/wastage of material
-
Model AWSFS-PBS (Approved By Weights And Measures Department)
-
Product Handled Chemical Powder,Activated Carbon,Dolomite,Flour(Maida,Atta),Coffee Powder
-
Bag Capacity Bagging From 25kg To 50kg
-
Accuracy : ±100gms
-
Bags/Hour: 100-150 Bags/Hr(50kg)
-
Bag Type Open Mouth-Cloth,Jute,LDPE,HDPE,Paper
-
Feeder Mechanism Speed And Accuracy Achieved With Double Screw Conveyors(Coarse & Fine Filling)
-
Bag Clamping Mechanism Pneumatically Operated With Foot-Lever Or Hand Lever For Easy Single Person Operation.Discharge Chute And Clamp Is Designed For Strong Grip On The Bag Without Sliding During Loading Of Material
